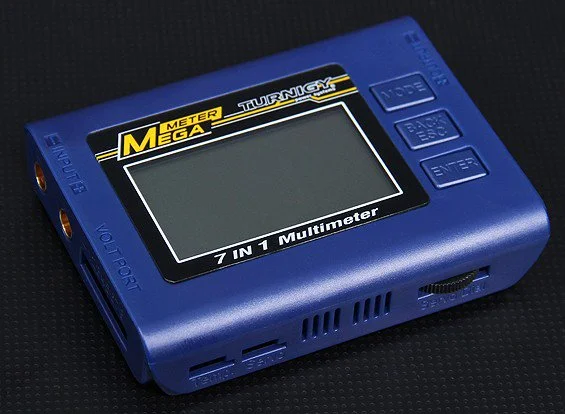

Turnigy 7 in 1 Mega Meter - Battery Checker/Watt Meter/Servo Tester/Optical Tacho/Temp Gauge/Thrust Calc/Battery Internal Resistance Checker.
The Turnigy Mega Meter is THE essential tool for electric flight, this easy to use meter will ensure that any power train is optimised before use, it is able to not only give you watts/amps/voltage figures but the in-built optical tacho can also give you RPM figures in an instant, combine these features with the in-built Thrust Calc and you have total peace of mind that your model will perform before it get's into the air, no more guesswork!
Likewise, the battery checker not only gives you the usual overall and individual cell voltages, you can also check internal resistance and temperature for an accurate overall picture of battery condition. As if all this wasn't enough, there is also an in-built servo tester! If you only ever buy one Meter for your toolbox, the Turnigy Mega Meter should be the one!
Functions:
Battery Cell/Voltage Checker
Battery Internal Resistance Checker
Watt Meter (Amps/Watts/Volts)
Servo Tester
Optical Tacho
Temp Gauge
Thrust Calculator
Battery Internal Resistance Meter
Specs:
Dimensions: 95.3mm x 72.8mm x 21.5mm
Weight: 85g
LCD Screen Size: 52mm x 30mm
Max Input Voltage: 60v
Voltage Display Resolution: 0.001v
Max Current: 100A
Shunt Resistance: 0.001ohm
Displayed Resolution A: 0.01
Temperature Resolution: 1 Celsius / 1 Farenheit
PPM Signal Output: 750uS ~ 2150uS
Prop Blade Measuring Range: 1~5
Prop RPM Range: 1~60,000 RPM
Includes:
Instructions
Power Leads
Temp Sensor Lead
