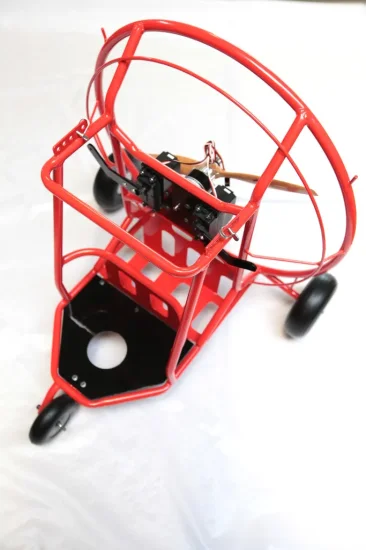

Trike L is especially designed for aerial applications.
Due to its special structure, this trike can bring up to 8kg (17.6 lbs). With full equipments, its payload capacity enables it to cruise around with 2 to 3kg onboard.
So, you can actually put easily your camera system on, camcorder with video transmitter, smoke machine and more !
After several tests, we have found the perfect setup for this trike.
Power which is required for 5 to 8kg weight range varies from 900 to 1100W. We also advise 14x6 to 15x6 propeller size. What about number of lipo cells ? It simply depends on your motor setup. In this range of power, we advise a high number of cells in order to limit heat effect due to current. We often use 4 to 6S lipo cells.
Specifications:
-
Lenght: 41cm
-
Width: 47cm
-
Height: 45cm
-
Weight without electronic (platines included): 2450gr
-
Material: Steel with glass and carbon fiber plates
-
Max propeller size : 15inches
Kit content:
-
Chassis
-
Plates with screws
-
2x 24Kg Servos
-
2x servo horns
-
2x stainless 4mm knucles
-
3x 77mm aluminum wheels
-
Manual
What you need to fly:
