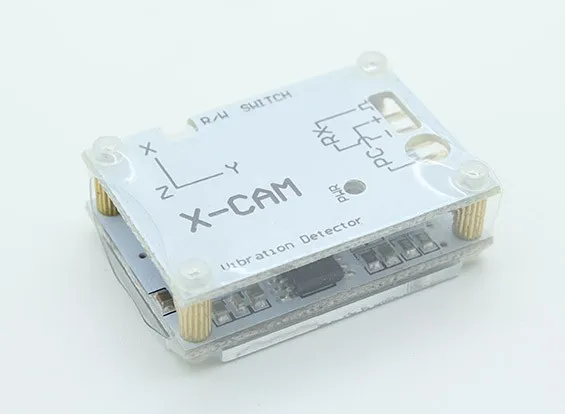

X-CAM Vibration tester

The X-CAM Vibration Detector is an invaluable tool in refining your set-up and identifying problems. It is a small standalone sensor that can be put almost anywhere to record 3 axis’s of vibration, from things like the bottom of a camera gimbal to compare isolation mounts or a motor mount to see how your prop and bearings are in flight versus just static. The recording can be activated via a RC channel or manually. And the best part is the data is retrieved with the included USB adapter, and displayed on an intuitive user interface with Frequency or Time domain charts. The software can even be sequenced and overlaid with your video to see what and how things effect vibration such as flutter analyses.  If you’re looking to get the most out of your set-up the X-CAM Vibration Tester is for you.

Specs:
Weight: 8g
Sampling frequency: 500Hz
Amplitude range: -2g to +2g
Frequency range:   1 to 200Hz
Max record time:   180 sec
Input voltage: 5 - 6V
Size: 24 x 35 x 12mm

Included:
Vibration Detector x 1
Servo wire x 1
USB Adapter x 1

Sofware and manual are        here       ! Drivers are for Windows 7 and it won't work on Windows 10!
