Tarot S-FHSS S.BUS Mini Receiver

-Compatible with the FUTABA S-FHSS/FHSS 8CH receiver, as 6J 8J 10J T14SG T18SZ/18MZ etc
-Applicable TAROT : 120/130/140/150/180 racing drone ,can put into S-BUS directly,Simplify the complexity of the wiring
-Light weight and small size, suitable for Mini racing drone

Specification:
-Output Channel：8CH
-Receiving mode：S-FHSS/FHSS
-Input Voltage：5V-8V
-Working Temperature range：-10-80℃
-Dimension：36X19X7 mm
-Weight：4.5g

Setup Steps:
1.Transmitter signals is S-FHSS/FHSS mode

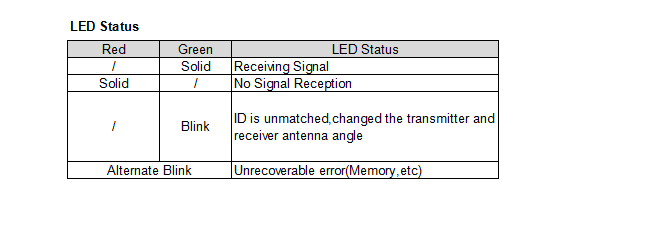

2.Turn on the receiver, the LED on the receiver should be red light
3.Turn on the transmitter, the LED on the receiver will be green light and flash
4.Press and hold the link switch about 3 seconds, the LED on the receiver will change to solid green, it indicates the binding is completed and successful
Warning:
If there are many S-FHSS systems turned on in close proximity, In that case, Pls don’t to linking, In order to avoid link to one of other transmitters, we strongly recommend you to doublecheck whether your receiver is really under control by your transmitter
