Models: all ALIGN TREX 700E versions
Installation Diagram: CLICK HERE

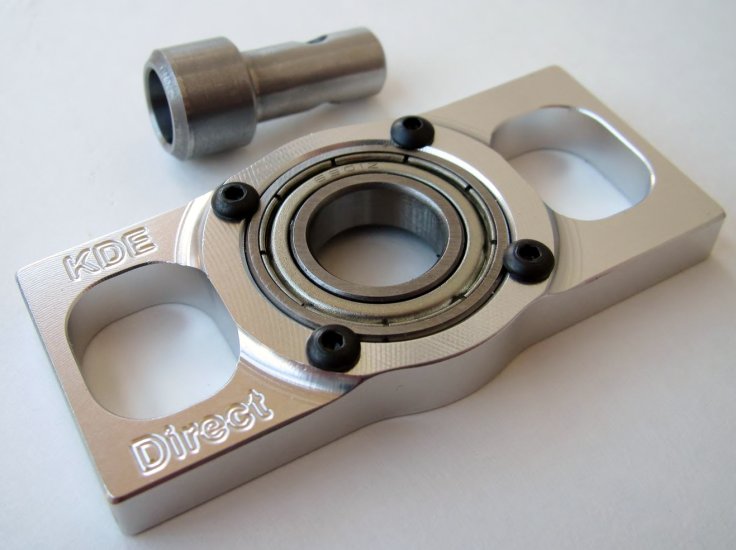

Note: the TREX 700 Series Triple Bearing Block upgrade provides a significant increase in frame stiffness and gear/pinion interface support for high-power, high-intensity flights. As a result, gear wear/noise is reduced substantially and the 90-class helicopter gear-train is capable of being pushed to the limits of power harder than ever before. The new upgrade provides drilling templates for both the TREX 700E series and 700N series frames; making it quick and simple to properly position the Triple Bearing Block to the correct location for easy installation and smooth operation.
Includes:
- One (1) TREX 700 Aluminum Metal third Bearing Block
- One (1) TREX 700 Stainless Steel Main Shaft Extension
- One (1) TREX 700 Clear adhesive Drilling Template, Left Frame
- One (1) TREX 700 Clear adhesive Drilling Template, Right Frame
- One (1) Radial Ball Bearing 12 x 24 x 6 mm
- Four (4) M2.5 x 0.45 x 6 mm Button Head Socket Cap Screws (Class 12.9 BP Alloy Steel)
- Four (4) M3 x 0.5 x 8 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Four (4) M3 Flat washers (Stainless Steel)
- One (1) M4 x 0.7 x 20 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
Finish:
Clear anodize, mirror-polish CNC gloss.
Weight:
Bearing block: 15 g (design is FEA optimized for maximum strength and minimum weight)
Main Shaft Extension: 9 g (design is FEA optimized for maximum strength and minimum weight)
